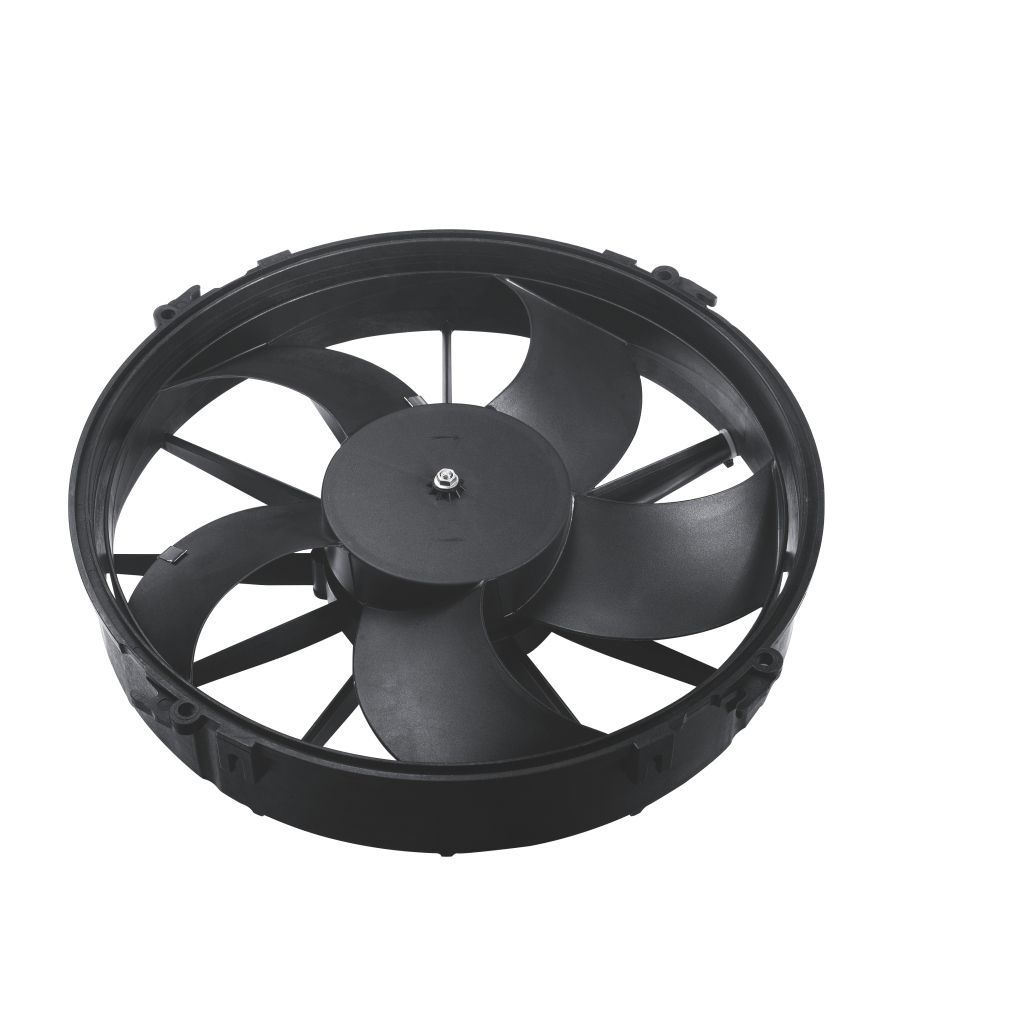

24V 12inch Brush DC cooling Fan / Axial Fan/ Condenser fan in suction, low noise with high airflow.
Widely use in air conditioner, bus, RV, engineering trucks, etc.
It always combined with blower fan together
Fast delivery: 1 week for sample and 2 weeks for bulky.
Both pusher and puller are options.
The parameter can be customized according to your special requirements.
| No. | Item | Data |
| 1 | Voltage | 24V |
| 2 | Power | 192W |
| 3 | Amps | 8A |
| 4 | Speed | 3000rpm |
| 5 | Airflow | 2300m³/h |
| 6 | Diameter | 305mm |
| 7 | Waterproof | IP63/IP67 |
24V |
LNF261-02S |
|
| D.C – C.C. | suction-aspirante | |
| Static | ||
| Pressure | Airflow | Current |
| Pressione | Portata | Corrente |
| Statica | ||
| in H2O | m³/h | A |
| 0 | 2241.22 | 5.49 |
| 5 | 1995.43 | 5.94 |
| 10 | 1636.78 | 6.21 |
| 15 | 1142.76 | 6.13 |
